Wearable integrated articular zone LIPUS massaging System
portable - 64g light, mobile phone size system.

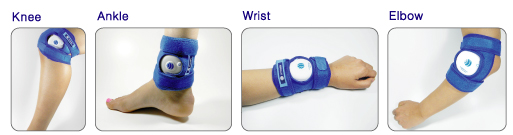

Wearable - flexible, and wearable to articular zone
Easy to use - single button initiates ultrasound, vibration, and safety timer.
Easy to charge - micro USB charging port for the included charger, pc USB line, and mobile phone charger
Safe 1MHz Standand Ultrasound
Safe pulsed Ultrasound with 27.5% duty rate
Made of skin - friendly medical grade silicone .

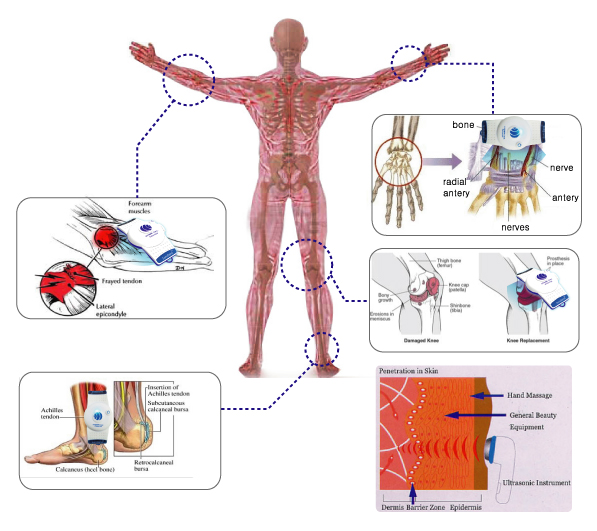

Massage solutions on Articular zone
tendon ligament joint bone cartilage
Your articular zone is composed of many critical constituents such as muscles, bones,
nerves, arteries, and veins, ligaments, tendons, cartilages, and body fluids.
SonoBand™ improves your wellness via smooth circulation of blood around many articular zones.
Up to now in order to massage your articular zone you have relied on others like your family
members or professional massager. Now, you can apply SonoBand™ system for your own
treatment at any place and on any time as your wish.
Recent findings tell us that periodic repetitive ultrasound stimulation on articular zone begins
to revitalze cells and tissues from after about 2 weeks. Periodic repetitive application is vital.
Pulsed ultrasound delivers the integrated massage effects to
articular zones via precision pulsed ultrasound, natural nutrients/aroma, heat,and vibration
Specifications
Power supply; 3.7Vdc LION rechargeable battery
Ultrasound frequency; 1.0MHz
Ultrasound Intensity; 42mW/㎠(SATA*), 153W/㎠(SATP*)
Ultrasound Radiation Area; 6.83㎠
Timer Duration; 1188Sec(19min 48sec)±2Sec
Dimension; 113(W)*60(D)*18(H)mm
Weight; 64g(Pulse Duration : 200microSecond(uS)±10%
Pulse Repetition Interval(PRI): 1000microSecond(uS)±2%
Duty Rate: 27.5%
* SATA: Spatial Average Temporal Average
* SATP: Spatial Average Temporal Peak

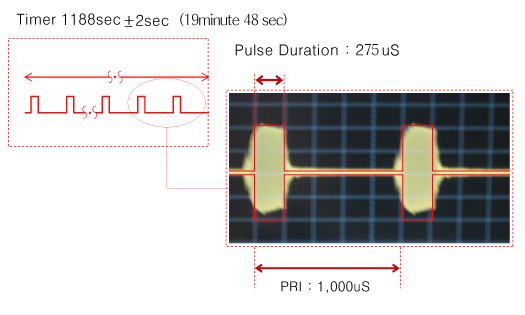

Illustration of Pulsed Ultrasound.

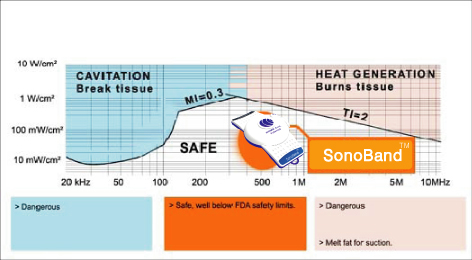

How Safe SonoBand™ is

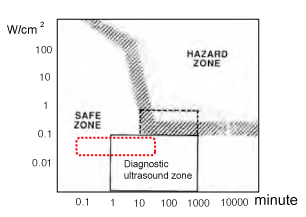

SonoBand™ is in the SAFE zone
In the SAFE zone : 1MHz, 42mW/㎠
* Maximum temperature of the transducer surface of SonoBand is below 50 C : the limit of ICE 60601-2-37.

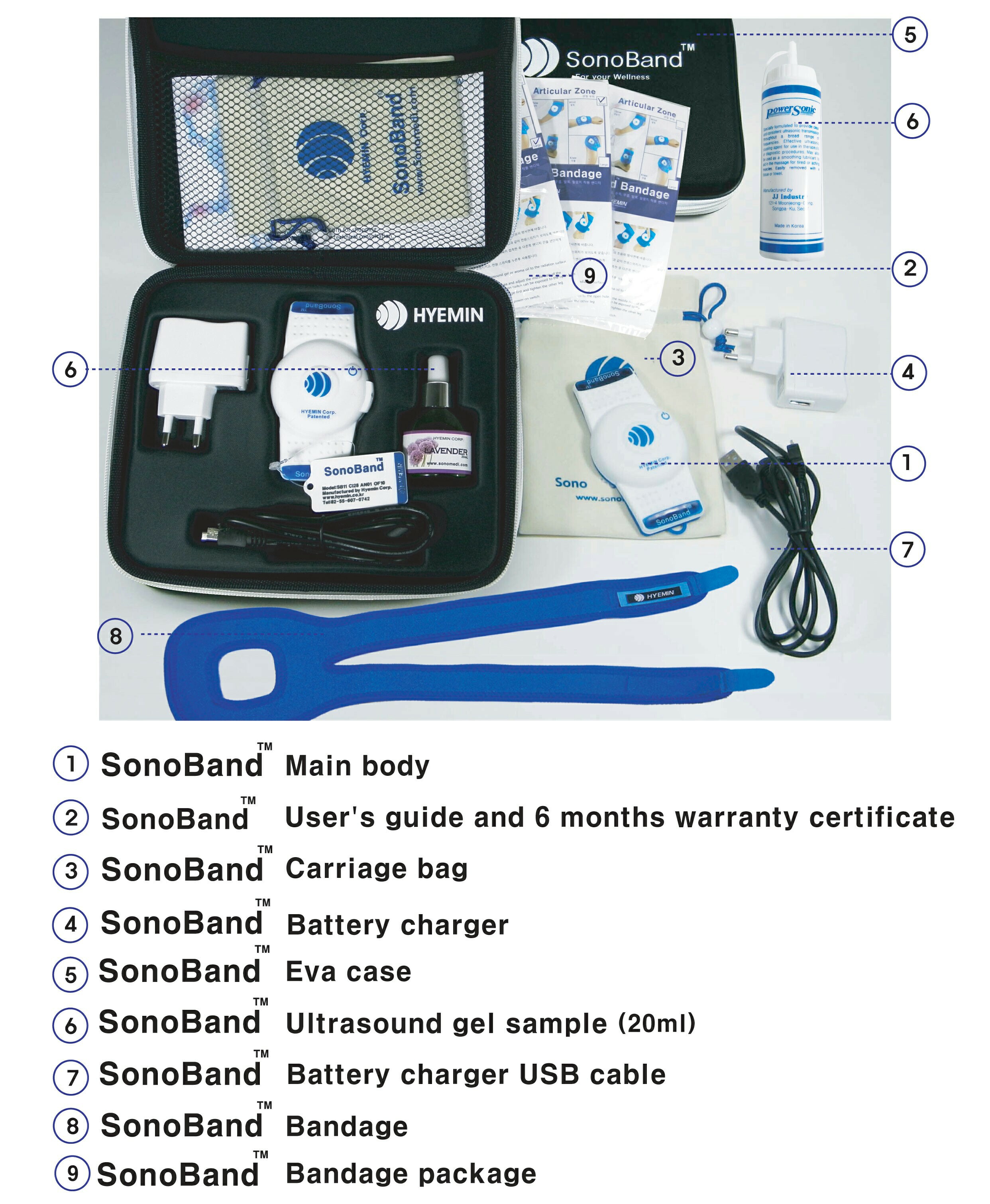

lncluded ltems in SonoBand™ pakage
